WFI systems designs by non-distillation technologies

Biopuremax Pretreatment (ESRTM-HODTM) – Single pass RO membrane – CDI – Ultra Filtration.
The above WFI system design is based on the following Water for Injection equipment:

  1. MMF (Multimedia filter)
  2. City water tank SS
  3. Cooling/heating heat exchanger, for chilled water/steam
  4. Optional Electrical heating elements if steam is not available.
  5. City water circulation pump – SS 316
  6. ESR™ – reactors fully fabricated from SS316L
  7. SS 316 filter – first stage of 10 micron
  8. SS 316 filter – second stage of 3 micron
  9. HOD™ – UV lamp to reduce free chlorine from 0.5 ppm to 0.05 ppm
  10. Hot water sanitized (HWS) single pass RO
  11. Liquicell CO2 degasser – Hot Water Sanitizable
  12. Hot water sanitized CEDI
  13. UF (Ultra Filtration) for WFI product

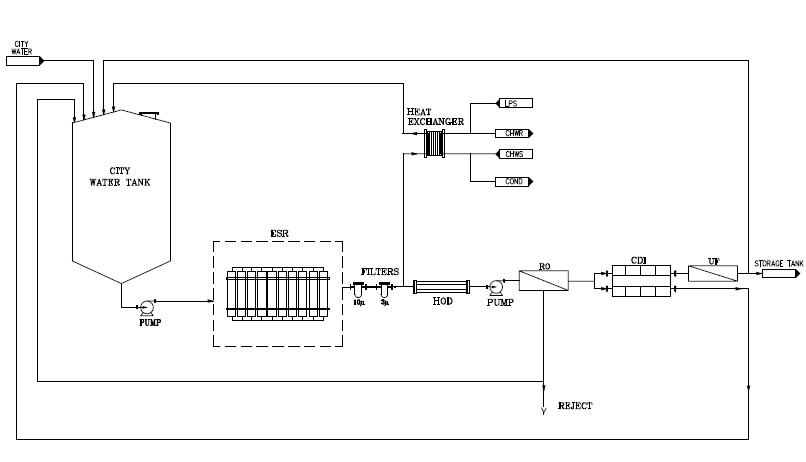

Biopuremax Pretreatment – Single pass RO membrane – CDI - Ultra Filtration
Biopuremax Pretreatment – Double pass RO membrane – CEDI
The above WFI system design is based on the following Water for Injection equipment:

  1. MMF (Multimedia filter)
  2. City water tank
  3. Cooling/heating Heat exchanger
  4. Optional Electrical heating elements if steam is not available.
  5. City water circulation pump – SS 316, resistant to Hot Water Sanitization
  6. ESR™ – reactors fully fabricated from SS316L
  7. SS 316 filter – one unit of 10 micron
  8. SS 316 filter – one unit of 3 micron
  9. HOD™ – UV lamp to reduce free chlorine from max 0.5 ppm to 0.05 ppm
  10. Hot water sanitized (HWS) double pass RO for WFI product
  11. Liquicell CO2 degasser
  12. Hot water sanitized CEDI

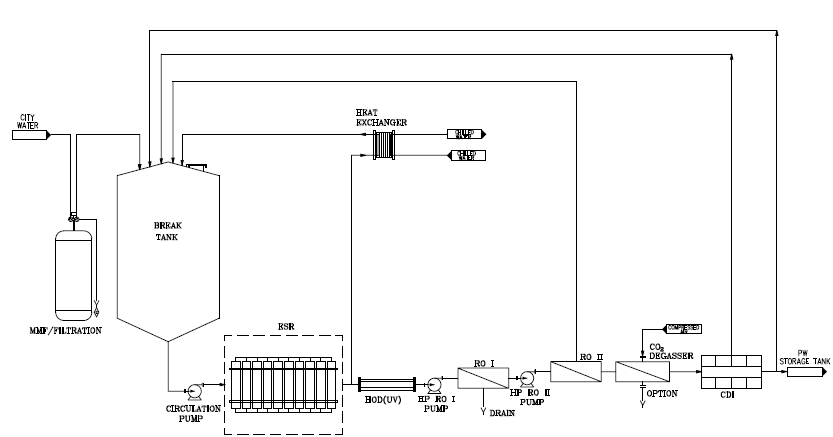

    Biopuremax Pretreatment – Double pass RO membrane – CEDI
